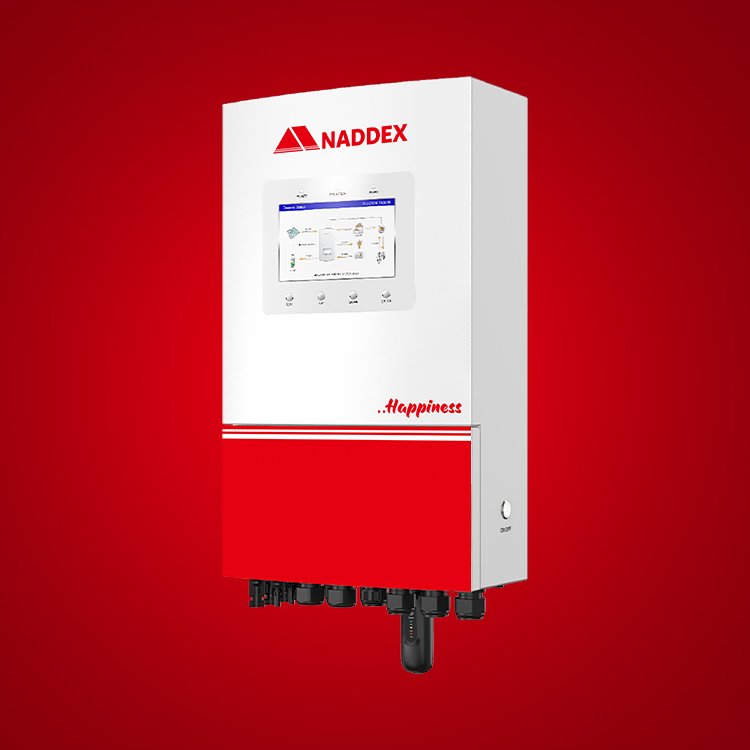

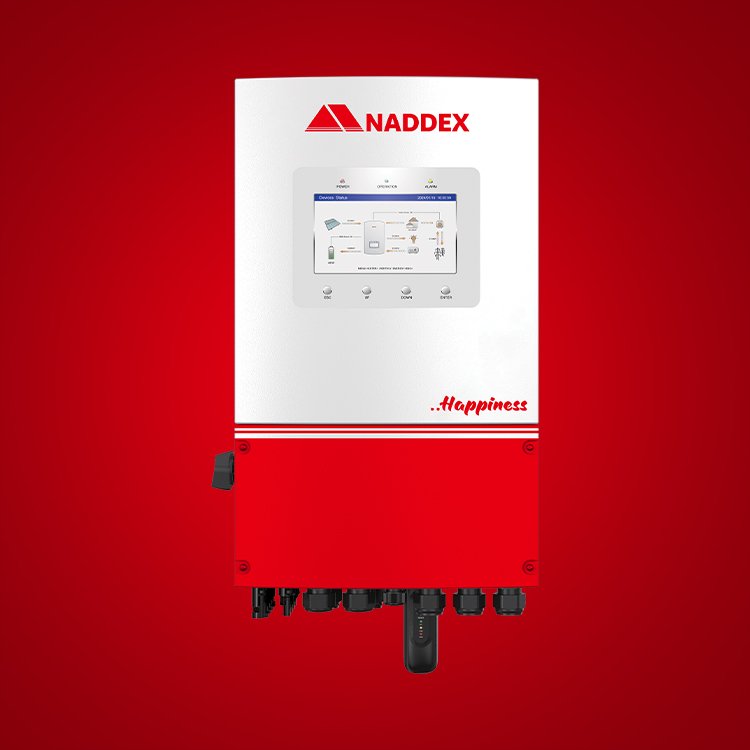

NADDEX N6-EH1P(3-10)K-L-PLUS4 Hybrid Energy Storage Inverter
The NADDEX N6-EH1P(3-10)K-L-PLUS4 is a single-phase low voltage hybrid energy storage inverter designed for residential and small commercial solar energy systems. It features AI-based smart energy management with TOU optimization, high-efficiency MPPT with 160% PV oversizing capability, and seamless integration with VPP and EMS platforms. With <10ms backup switching time and compatibility with both lithium and lead-acid batteries, it provides reliable and flexible energy storage solutions.
Product Features
- AI Smart Energy Management – Intelligent charging/discharging based on time-of-use tariffs
- VPP & EMS Integration – Seamless compatibility with virtual power plant and energy management systems
- 160% PV Oversizing – Maximizes solar energy harvest with higher DC input capacity
- Ultra-Fast Backup Switching – <10ms transition time for uninterrupted power supply
- Dual Battery Compatibility – Works with both lithium-ion and lead-acid batteries (40-60V)
- Parallel & AC Coupling Scalability – Easy system expansion through parallel connection
- 7-inch Industrial Touchscreen – ZEITLER industrial-grade display for easy monitoring
- Bluetooth App Control – Quick setup and remote management via mobile application
- High Efficiency Operation – Up to 96.2% maximum efficiency with 96.1% EU efficiency
- Multi-Communication Options – RS485, CAN, with optional Wi-Fi, GPRS, and LAN connectivity
Contact
Interested in this hybrid energy storage inverter for your solar energy needs?
Contact our solar specialists on WhatsApp/WeChat
Technical Specifications: N6-EH1P(3-10)K-L-PLUS4
Single Phase Hybrid Energy Storage Inverter
PV INPUT SPECIFICATIONS
| Model | 3K | 3.6K | 5K | 6K | 8K | 10K |
|---|---|---|---|---|---|---|
| PV Array Configuration | ||||||
| Recommended Max PV Array | 6 kW | 7.2 kW | 10 kW | 12 kW | 16 kW | 20 kW |
| Max Usable PV Power | 4.8 kW | 5.76 kW | 8 kW | 9.6 kW | 12.8 kW | 16 kW |
| Electrical Parameters | ||||||
| Max DC Voltage | 500 V | |||||
| Rated Voltage | 330 V | |||||
| MPPT Voltage Range | 90 – 435 V | |||||
| Max Input Current | 16+16 A | 16+16 A | 32+32 A | 32+32 A | 42+42 A | 42+42 A |
| MPPT Channels | 2 | 2 | ||||
| Max Input Strings | 2 | 4 | ||||
BATTERY SPECIFICATIONS
| Model | 3K | 3.6K | 5K | 6K | 8K | 10K |
|---|---|---|---|---|---|---|
| Battery Parameters | ||||||
| Battery Type | Lithium-ion / Lead-acid | |||||
| Voltage Range | 40 – 60 V | |||||
| Max Charge/Discharge Power | 3 kW | 3.6 kW | 5 kW | 6 kW | 8 kW | 10 kW |
| Max Charge/Discharge Current | 70 A | 80 A | 112 A | 135 A | 190 A | 210 A |
| Communication | CAN / RS485 | |||||
AC OUTPUT SPECIFICATIONS
| Model | 3K | 3.6K | 5K | 6K | 8K | 10K |
|---|---|---|---|---|---|---|
| Grid Connection | ||||||
| Rated Output Power | 3 kW | 3.6 kW | 5 kW | 6 kW | 8 kW | 10 kW |
| Max Apparent Power | 3 kVA | 3.6 kVA | 5 kVA | 6 kVA | 8 kVA | 10 kVA |
| Rated Voltage | 220 V / 230 V | |||||
| Rated Frequency | 50 Hz / 60 Hz | |||||
| Rated Output Current | 13.7/13.1 A | 16.4/15.7 A | 22.8/21.8 A | 27.3/26.1 A | 36.4/34.8 A | 45.5/43.5 A |
| Power Factor | > 0.99 (0.8 leading – 0.8 lagging) | |||||
| THDI | < 3% | |||||
BACKUP OUTPUT SPECIFICATIONS
| Model | 3K | 3.6K | 5K | 6K | 8K | 10K |
|---|---|---|---|---|---|---|
| Backup Power | ||||||
| Rated Output Power | 3 kW | 3.6 kW | 5 kW | 6 kW | 8 kW | 10 kW |
| Max Apparent Power | 2 x rated power for 10 seconds | |||||
| Backup Switch Time | < 10 ms | |||||
| Rated Output Voltage | 220 V / 230 V | |||||
| THDv (linear load) | < 2% | |||||
| Max AC Passthrough Current | 35 A | 35 A | 40 A | 40 A | 50 A | 65 A |
EFFICIENCY & PERFORMANCE
| Parameter | Specification |
|---|---|
| Max Efficiency | 96.2% |
| EU Efficiency | 96.1% |
| Battery Charging Efficiency (PV/AC) | 95.3% / 93.9% |
| Battery Discharging Efficiency | 93.8% |
| Operating Temperature | -40°C to +60°C |
| Cooling System | Natural cooling (3K-6K) / Intelligent fan cooling (8K-10K) |
| Noise Level | < 65 dB(A) |
PROTECTION FEATURES
| Protection Type | Status |
|---|---|
| Anti-islanding Protection | Yes |
| Ground Fault Monitoring | Yes |
| DC Reverse Polarity Protection | Yes |
| Integrated AFCI 2.0 | Optional |
| Protection Class | I / II (PV and BAT), III (MAINS and BACKUP and GEN) |
PHYSICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Dimensions (W×H×D) | 335 × 560 × 253 mm |
| Weight (3K/3.6K-5K/6K-10K) | 23 kg / 23.5 kg / 23.8 kg |
| Ingress Protection | IP66 |
| Max Operation Altitude | 3000 m |
| Relative Humidity | 0 – 100% |
CONNECTIVITY & COMMUNICATION
| Interface Type | Specification |
|---|---|
| DC Connection (PV) | MC4 Plug |
| DC Connection (Battery) | Terminal Block |
| AC Connection | Terminal Block |
| Display | 7.0″ LCD Touchscreen |
| Standard Communication | RS485, CAN |
| Optional Communication | Wi-Fi, GPRS, LAN |
| Mobile App | Bluetooth compatible |
COMPLIANCE & CERTIFICATIONS
| Standard Type | Certifications |
|---|---|
| Grid Connection Standards | NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150, G98, CEI 0-21 |
| Safety / EMC Standards | IEC/EN 62109-1/-2, EN 61000-6-2/-3 |
Recommended System Configuration:
Solar Array: 6-20kW PV system depending on model (160% oversizing capability)
Battery Storage: 40-60V lithium-ion or lead-acid battery bank
Load Capacity: 3-10kW continuous output with backup power capability
Typical Applications: Residential homes, small businesses, clinics, schools, remote installations
Energy Management: AI-based TOU optimization for maximum savings, VPP and EMS integration
Scalability: Parallel connection capability for system expansion
OPERATION MODES
Grid-Tied Mode
- Feed solar power to grid
- Charge battery from grid (TOU optimized)
- Power factor >0.99
- THDI < 3%
Backup Mode
- <10ms switchover time
- Pure sine wave output
- THDv < 2%
- 2x surge capacity for 10 seconds
Off-Grid Mode
- Island operation capability
- Generator support
- Battery priority management
- Load shedding capability
Hybrid Mode
- AI-based energy management
- TOU tariff optimization
- VPP/EMS integration
- Peak shaving capability
NADDEX N6-EH1P SERIES OVERVIEW
| MODEL | POWER RATING | BATTERY VOLTAGE | MAX PV INPUT | RECOMMENDED APPLICATION |
|---|---|---|---|---|
| N6-EH1P 3K-L-PLUS4 | 3 kW | 40-60V | 6 kW | Small homes, cabins |
| N6-EH1P 3.6K-L-PLUS4 | 3.6 kW | 40-60V | 7.2 kW | Medium homes, offices |
| N6-EH1P 5K-L-PLUS4 | 5 kW | 40-60V | 10 kW | Large homes, small businesses |
| N6-EH1P 6K-L-PLUS4 | 6 kW | 40-60V | 12 kW | Commercial, retail shops |
| N6-EH1P 8K-L-PLUS4 | 8 kW | 40-60V | 16 kW | Large businesses, clinics |
| N6-EH1P 10K-L-PLUS4 | 10 kW | 40-60V | 20 kW | Industrial, schools, community centers |
NADDEX provides complete solar solutions, including panels, inverters, mounting systems, and LiFePO4 batteries for homes, businesses, and large projects.
