Description

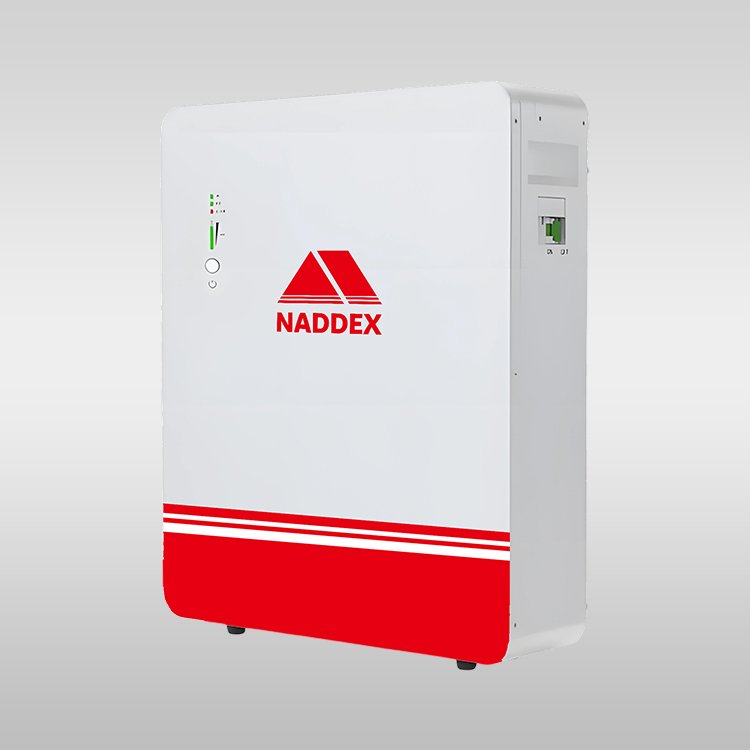

NA-LVW-5.0 Low Voltage Wall-mounted Energy Storage Battery
The NA-LVW-5.0 is a compact 5.12kWh LiFePO4 wall-mounted energy storage battery designed for residential and small commercial applications. Featuring over 5,000 cycles and 10-year service life, this modular battery supports parallel connection of up to 15 units for a total capacity of 76.8kWh. With built-in communication interfaces (RS485/CAN) and multiple international certifications, it offers reliable performance for solar energy storage systems.
Product Features
- 5.12kWh Energy Capacity – Ideal for residential solar storage
- Long Cycle Life – ≥5,000 cycles for extended durability
- 10-Year Service Life – Long-term reliable performance
- High Current Support – Max 95A charge / 100A discharge capability
- Flexible Scalability – Connect up to 15 units in parallel (76.8kWh total)
- Multiple Communication Options – RS485 and CAN interfaces
- International Certifications – UN38.3, CE, IEC62619, UL1973, UL9540A compliant
- Compact Wall-mounted Design – Space-saving installation
Contact
Interested in this wall-mounted energy storage solution?
Contact us on WhatsApp/WeChat for details
Technical Specifications: NA-LVW-5.0
Basic Specifications
| Rated Energy | 5.12 kWh |
| Rated Voltage | 51.2 V |
| Weight | 48 kg |
| Dimensions (H×W×D) | 560 × 480 × 137 mm |
| IP Rating | IP20 |
| Service Life | 10 years |
Electrical Performance
| Standard Charge/Discharge Current | 50 A |
| Max. Constant Charge Current | 95 A |
| Max. Constant Discharge Current | 100 A |
| Cycle Life | ≥5,000 cycles |
Communication & Connectivity
| Communication Interfaces | RS485 / CAN |
| Max. Parallel Connection | 15 units |
| Total Parallel Capacity | 76.8 kWh |
Certifications & Compliance
| UN38.3 | Certified |
| CE | Certified |
| IEC62619 | Available |
| UL1973 | Design to meet |
| UL9540A | Design to meet |
Product Category
| Product Type | Low-voltage Wall-mounted |
| Model | NA-LVW-5.0 |
| Application | Residential & Commercial Solar Storage |
Important Notes:
Scalability: This battery supports parallel connection of up to 15 units, providing a maximum total energy capacity of 76.8kWh for larger energy storage requirements.
Certifications: The product is certified according to UN38.3 and CE standards, with IEC62619 certification available. The design meets UL1973 and UL9540A requirements for enhanced safety and reliability.
Confidential information of NADDEX, no spreading without permission.
Installation Advantages
- Wall-mounted design saves floor space
- Compact dimensions for flexible placement
- Easy installation and maintenance
- Modular expansion capability
Performance Benefits
- High charge/discharge currents (up to 100A)
- Long cycle life (≥5,000 cycles)
- 10-year service life
- Reliable performance in various conditions
Safety & Compliance
- Multiple international safety certifications
- Designed to meet UL standards
- IP20 protection rating
- Built-in protection mechanisms
