Description

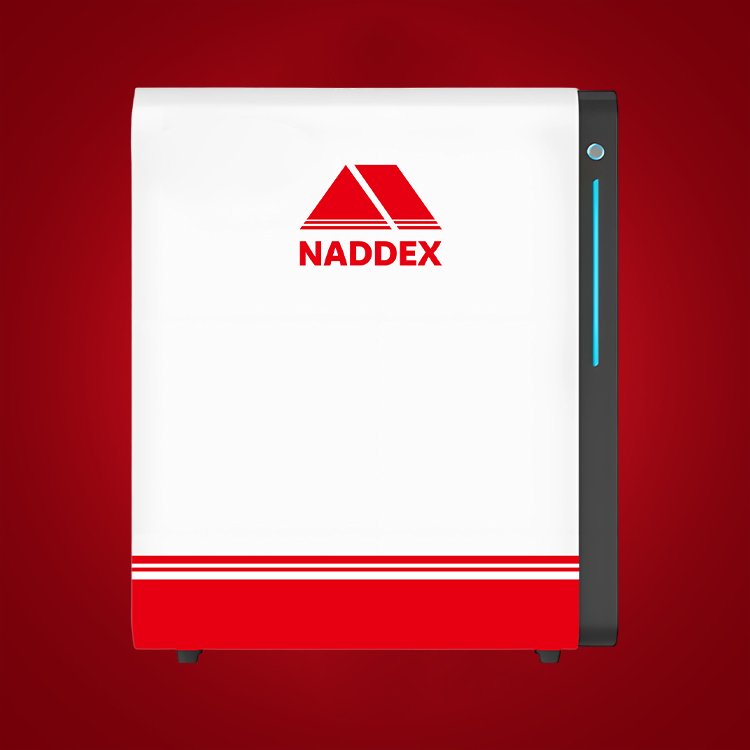

NA-PLW-III-5 Low Voltage Wall-mounted Energy Storage Battery
The NA-PLW-III-5 is an advanced 5.12kWh LiFePO4 wall-mounted energy storage battery with IP65 protection rating for indoor and outdoor applications. Featuring over 5,000 cycles and 10-year design life, this robust battery supports parallel connection of up to 15 units for a total capacity of 76.8kWh. With high current capability (100A/100A) and dual communication interfaces, it offers superior performance for demanding solar energy storage systems.
Product Features
- 5.12kWh Energy Capacity – High-density energy storage
- IP65 Protection Rating – Dust-tight and water-resistant for versatile installation
- Long Cycle Life – ≥5,000 cycles for extended durability
- 10-Year Design Life – Engineered for long-term reliability
- High Power Capability – 100A continuous charge and discharge currents
- Flexible Scalability – Connect up to 15 units in parallel (76.8kWh total)
- Dual Communication – RS485 and CAN interfaces for system integration
- International Certifications – UN38.3, IEC62619, CE compliant
- Compact Design – Space-efficient wall-mounted installation
Contact
Interested in this IP65-rated energy storage solution?
Contact us on WhatsApp/WeChat for details
Technical Specifications: NA-PLW-III-5
Basic Specifications
| Rated Energy | 5.12 kWh |
| Rated Voltage | 51.2 V |
| Weight | 47 kg |
| Dimensions (H×W×D) | 560 × 480 × 150 mm |
| IP Rating | IP65 (Dust-tight & Water-resistant) |
| Design Life | 10 years |
Electrical Performance
| Standard Current | 50 A |
| Max. Continuous Charge Current | 100 A |
| Max. Continuous Discharge Current | 100 A |
| Cycle Life | ≥5,000 cycles |
Communication & Connectivity
| Communication Interfaces | RS485 / CAN |
| Max. Parallel Connection | 15 units |
| Total Parallel Capacity | 76.8 kWh |
Certifications & Compliance
| UN38.3 | Certified |
| IEC62619 | Certified |
| CE | Design to meet |
Product Category
| Product Type | Low-voltage Wall-mounted (IP65) |
| Model | NA-PLW-III-5 |
| Application | Indoor/Outdoor Solar Storage |
Environmental Protection
- Dust-tight – Complete protection against dust ingress
- Water-resistant – Protected against water jets from any direction
- Outdoor Ready – Suitable for garage, patio, or external wall installation
- Humidity Resistant – Performs in high humidity environments
Installation Flexibility
- Install indoors or outdoors
- No additional enclosure required
- Resistant to weather conditions
- Wide temperature operation range
Performance Benefits
- Higher current capacity (100A continuous)
- Balanced charge/discharge capabilities
- Enhanced thermal management
- Improved safety features
Important Notes:
Scalability: This battery supports parallel connection of up to 15 units, providing a maximum total energy capacity of 76.8kWh for larger energy storage requirements.
IP65 Advantage: The IP65 rating makes this battery ideal for installations where dust or water exposure is a concern, including garages, outdoor sheds, or industrial environments.
