Description

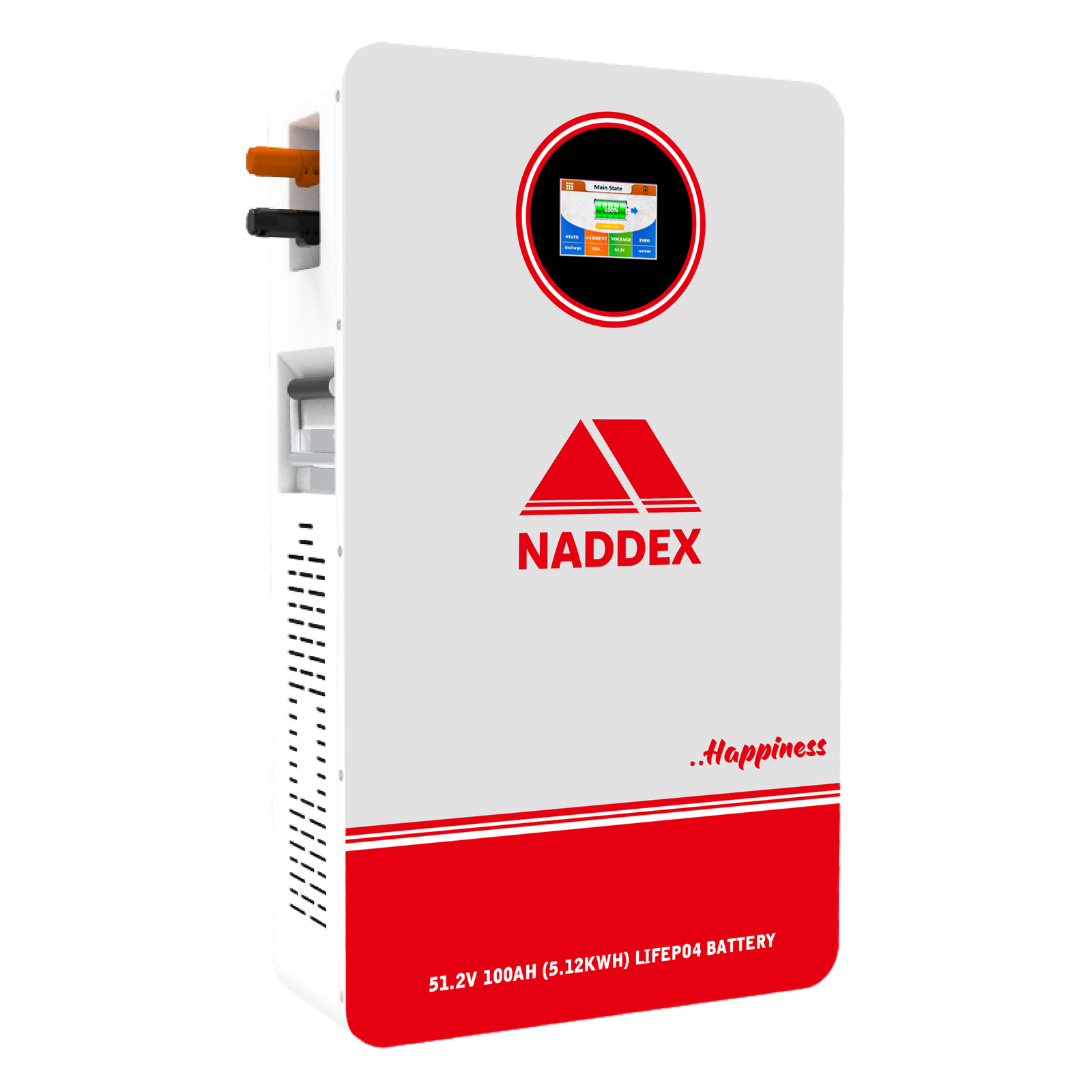

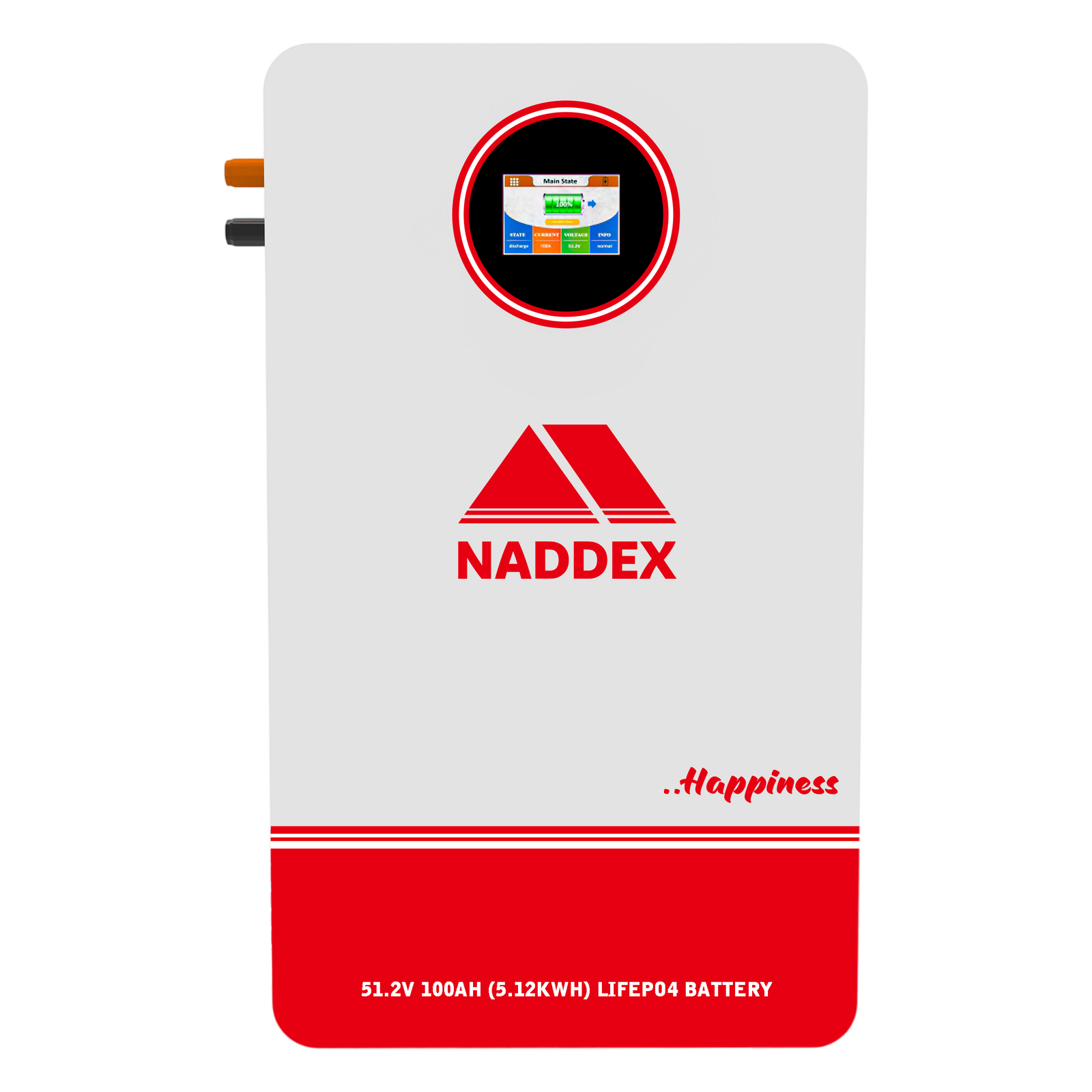

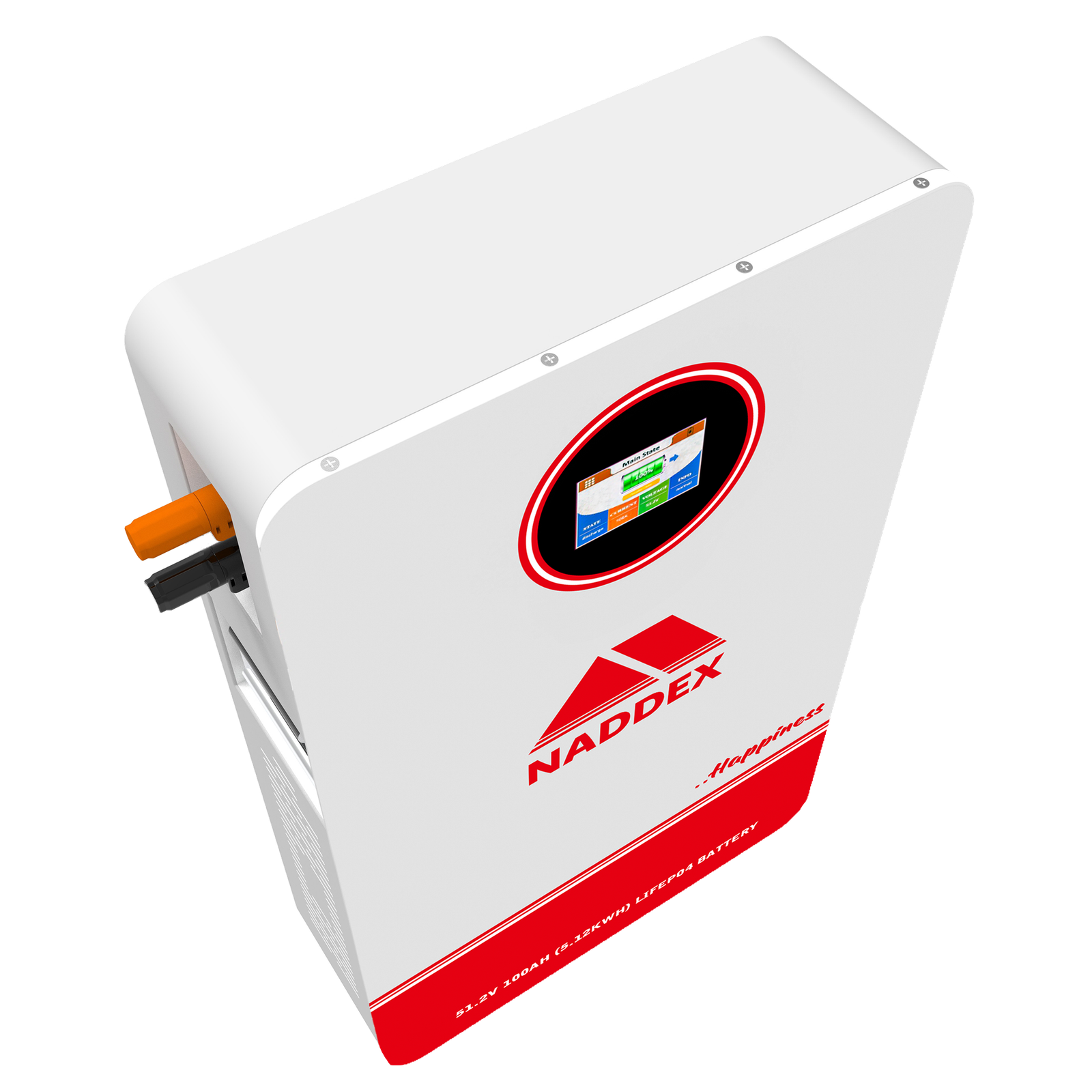

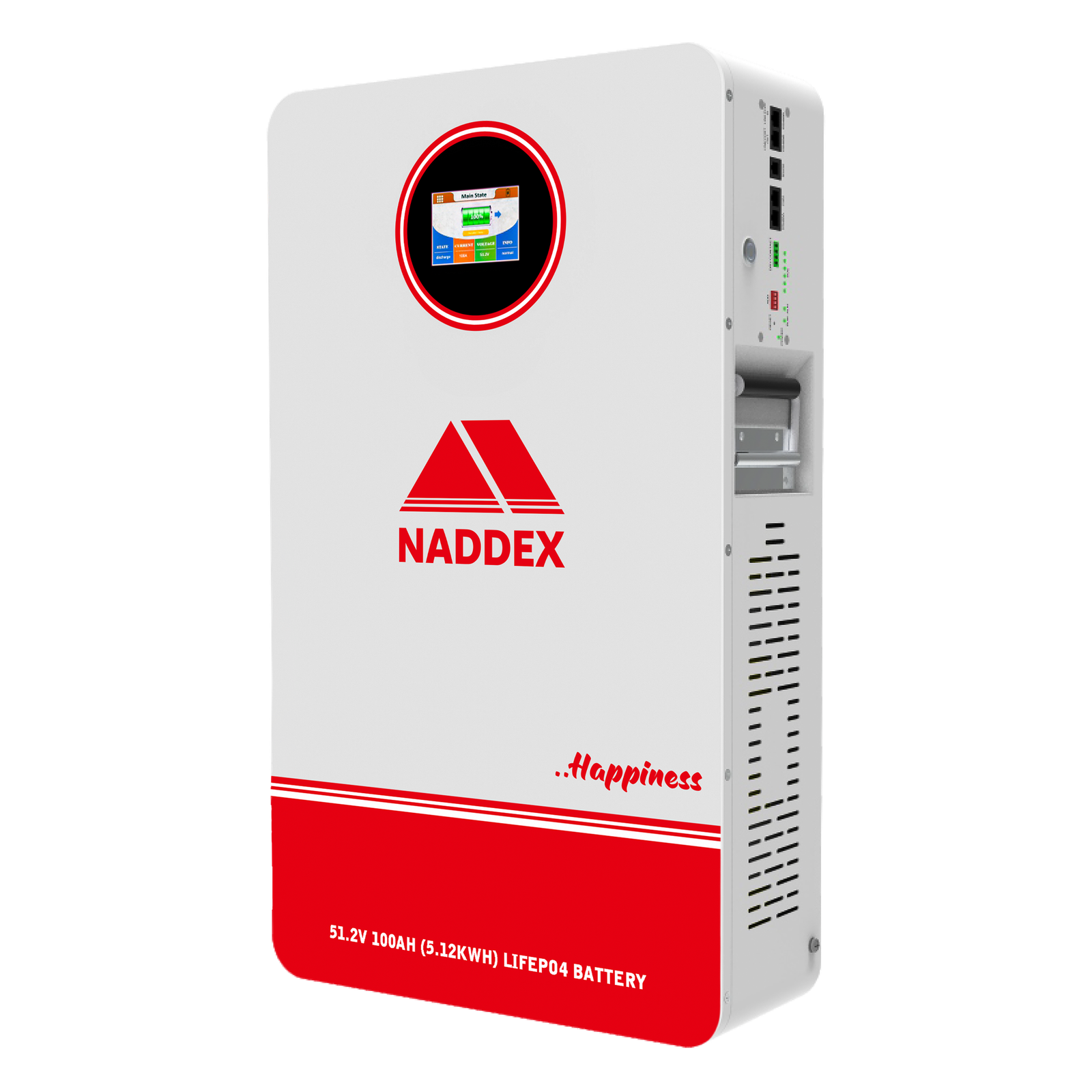

NADDEX-EX-16S100 Energy Storage Battery
The NADDEX-EX-16S100 energy storage battery utilizes LiFePO4 cells with over 6,500 cycles at 80% DoD. Scalable up to 241.2 kWh via 15-unit parallel connection. Features a built-in smart BMS with WiFi real-time monitoring, compatible with 90% of hybrid inverters. Modular design with wheels enables plug-and-play installation. Certified with IEC62619, CE, UN38.3, and MSDS for residential, commercial, and industrial applications.
Product Features
- LFP (Lithium Iron Phosphate) cells to ensure the highest safety and reliability.
- Built-in Smart BMS protects the battery by monitoring Temperature, Current, Voltage, and SoC.
- Extra-long cycle life with over 5,000 cycles at 80% DoD for extended usage.
- Compatible with most available hybrid inverters on the market.
- Scalable with parallel connection up to 16 units, allowing flexible energy storage expansion.
Contact
Have questions or want to get started with this battery?
Chat with us on WhatsApp / WeChat now!
General Information
| Nominal Voltage |
51.2 Vdc |
| Nominal Capacity |
100 Ah |
| Nominal Energy |
5120 Wh |
| Battery Chemistry |
3.2V LiFePO₄ |
| Cell Connectivity |
16S1P |
| Efficiency (Round Trip) |
≥98% |
| Self-Discharge Rate |
<3% Monthly |
| Max. In Parallel |
16 Pcs |
| Max. In Series |
Not Allowed |
| Cycle Life |
6500 Cycles
0.2C25°@80% DoD |
| Origin |
Shenzhen, China |
| BMS Build-in |
Yes |
Operating Parameters
| Operating Voltage Range |
44.8V-57.6V |
| Discharge Cut-Off Voltage |
40V |
| Max. Discharge Current |
100A |
| Peak Discharge Current |
150A (3s) |
| Max. Charge Voltage |
58.4V |
| Standard Charge |
20A (0.2C) |
Environmental Specifications
| Discharge Temperature |
-20°C ~ 55°C |
| Charge Temperature |
0°C ~ 55°C |
| Storage Temperature |
-10°C ~ 30°C |
| Ingress Rating |
IP52 |
Mechanical Specifications
| Dimensions (L*W*H) |
650*384*142 mm |
| Weight |
45 Kg |
| Mounting Options |
Wall |
| Indicator State |
ALM/RUN/SoC |
Others
| Screen |
Touchable LED |
| Terminals |
Magnetic Plug-In |
| Case Material |
SPCC Steel |
| Bracket |
Yes |
| Heating |
Optional |
| Bluetooth(App) |
Optional |
BMS Protection Characteristics
| Protection Type |
Value |
Delay Time |
| Primary Charging Current |
105A |
20s |
| Second Charging Current |
110A |
2~3s |
| Primary Discharging Current |
110A |
10s |
| Second Discharging Current |
150A |
100ms |
| Over-Charge Voltage |
58.4V |
1~2s |
| Over-Discharge Voltage |
40V |
1~2s |
| Temperature PCB Temperature |
≥95°C |
Recover ≤85°C |
| Communication Port |
RS485, Optional For CAN/Dry Contact |
Constant Current Discharge Data (Amperes @ 25°C)
| Discharge Time |
1h |
2h |
3h |
4h |
5h |
10h |
20h |
| Cut-Off Voltage (40V) |
— |
50A |
33.3A |
25A |
20A |
10A |
5A |
Constant Power Discharge Data (Watts @ 25°C)
| Discharge Time |
1h |
2h |
3h |
4h |
5h |
10h |
20h |
| Cut-Off Voltage (40V) |
— |
2560W |
1706.7W |
1280W |
1024W |
512W |
256W |
